Precision Metal Forming
Our forming line pairs precision with capacity. We run a variety of press brakes, including an automated Trumpf bending cell and electric brakes, plus plate rollers that produce large or small runs of quality parts. From simple flanges to complex multi-bend geometry, we hold spec so your parts fit right the first time.
Because forming sits alongside our laser cutting, machining, and welding under one roof, your project moves between steps without shipping delays. Tell us your material, gauge, and volume, and we'll recommend the most efficient approach.
Precision and Capacity in Every Bend
2019 Trumpf 7000 Bend Cell
2016 Bystronic Xperts (2x)
40 ton x 4’ bed, 352 ton x 13’ bed : 22” stroke, laser angle measurement
2018 Bystronic Xpert 80
80 ton x 60” bed with 5 axis backgauge electric brake
2011 Bystronic Xpert
390 ton x 13’ bed with 6 axis backgauge

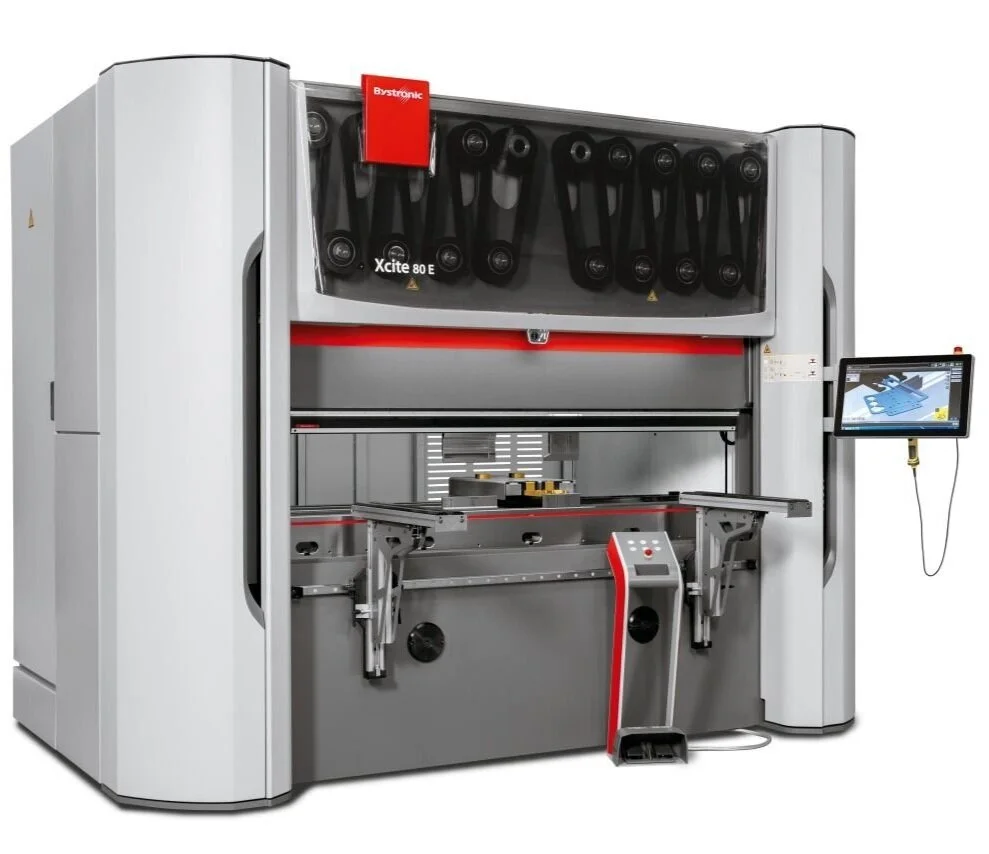

2013 Bystronic Xcite (2x)
88 ton x 81” bed with 5 axis backgauge electric brake

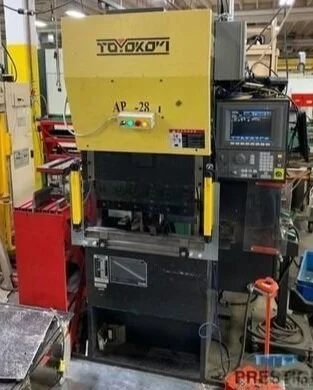

2010 Toyokoki APB
60 ton x 51” bed electric brake
2005 AccuRpress 710010
100 ton x 10’ bed hydraulic brake
2012 Americor Hydraulic Double Pinch 4 Roll Plate Roll
4’ x ¼” M.S. capacity
